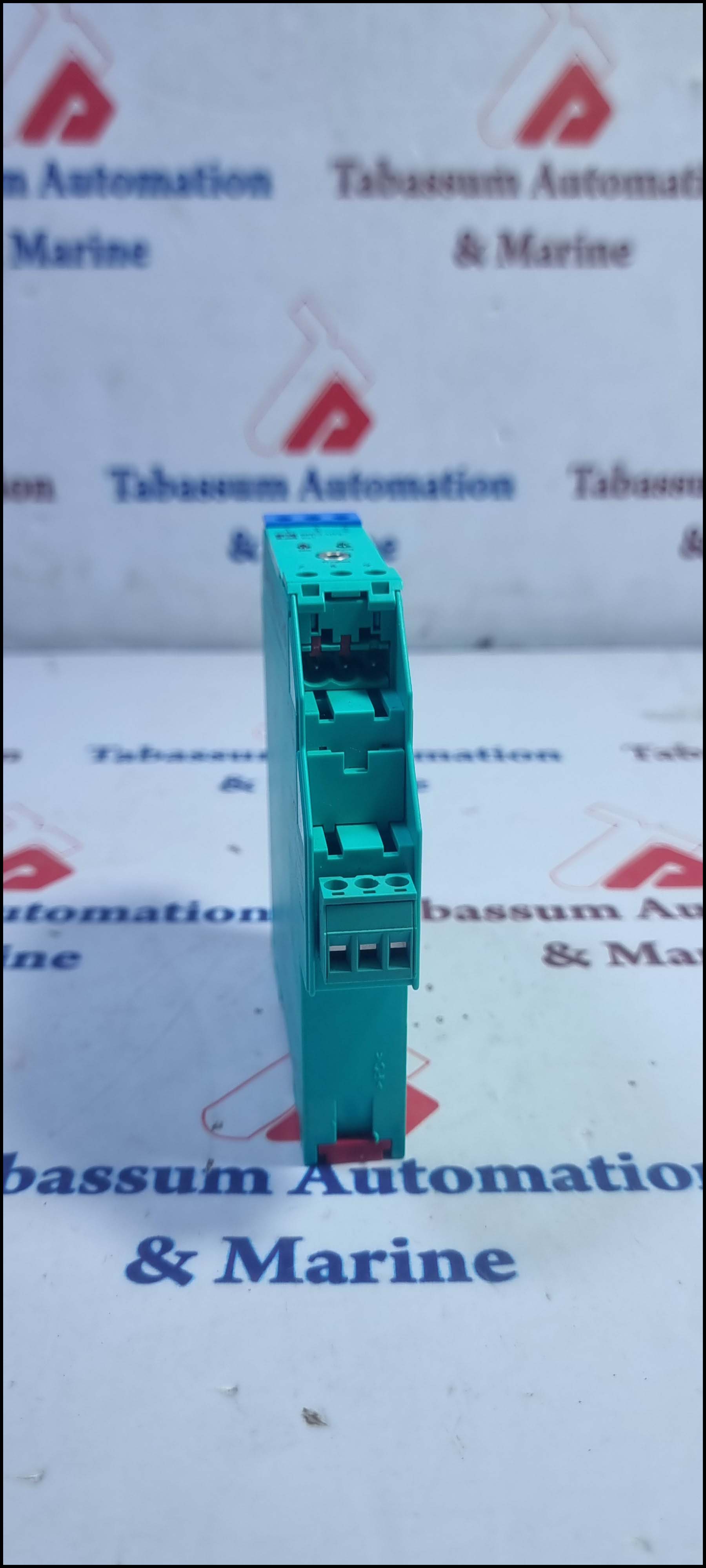

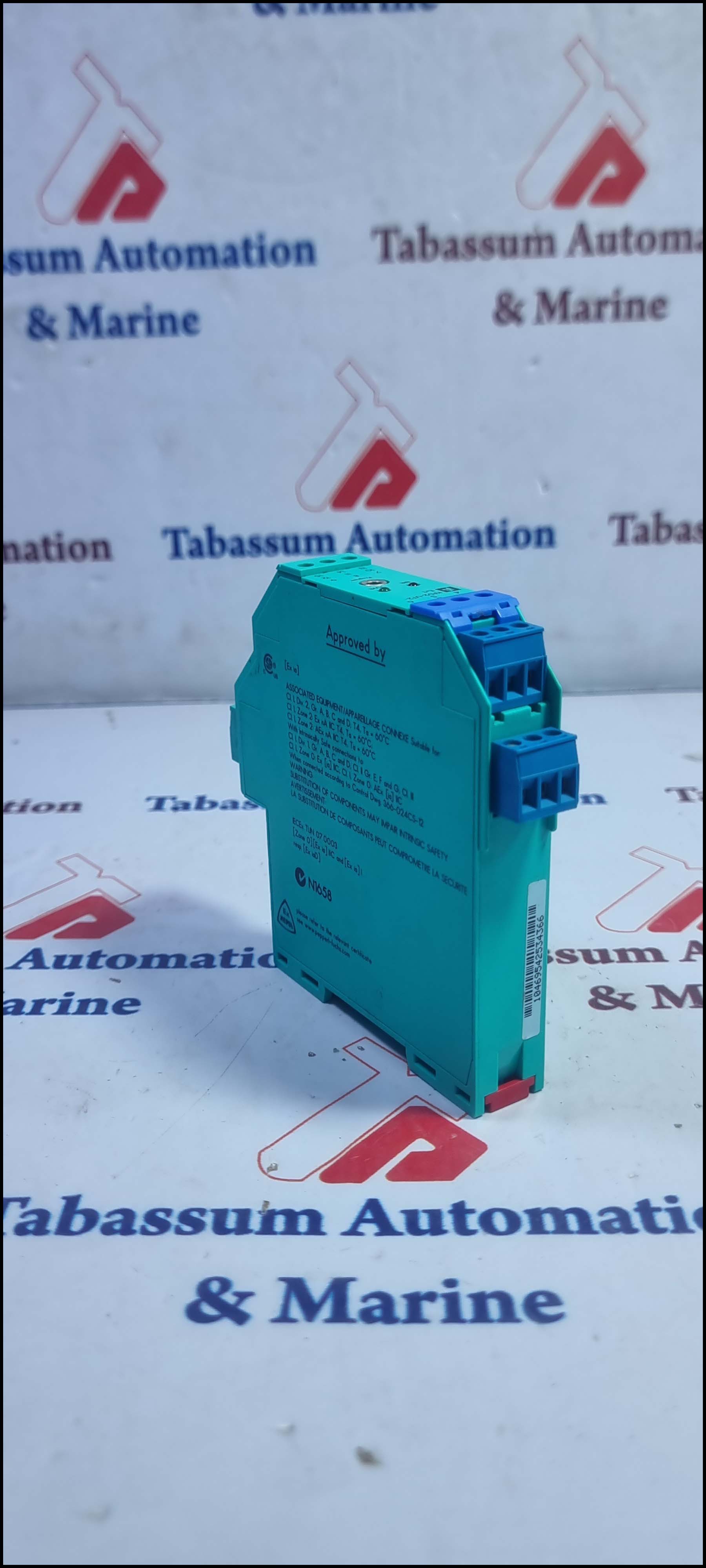

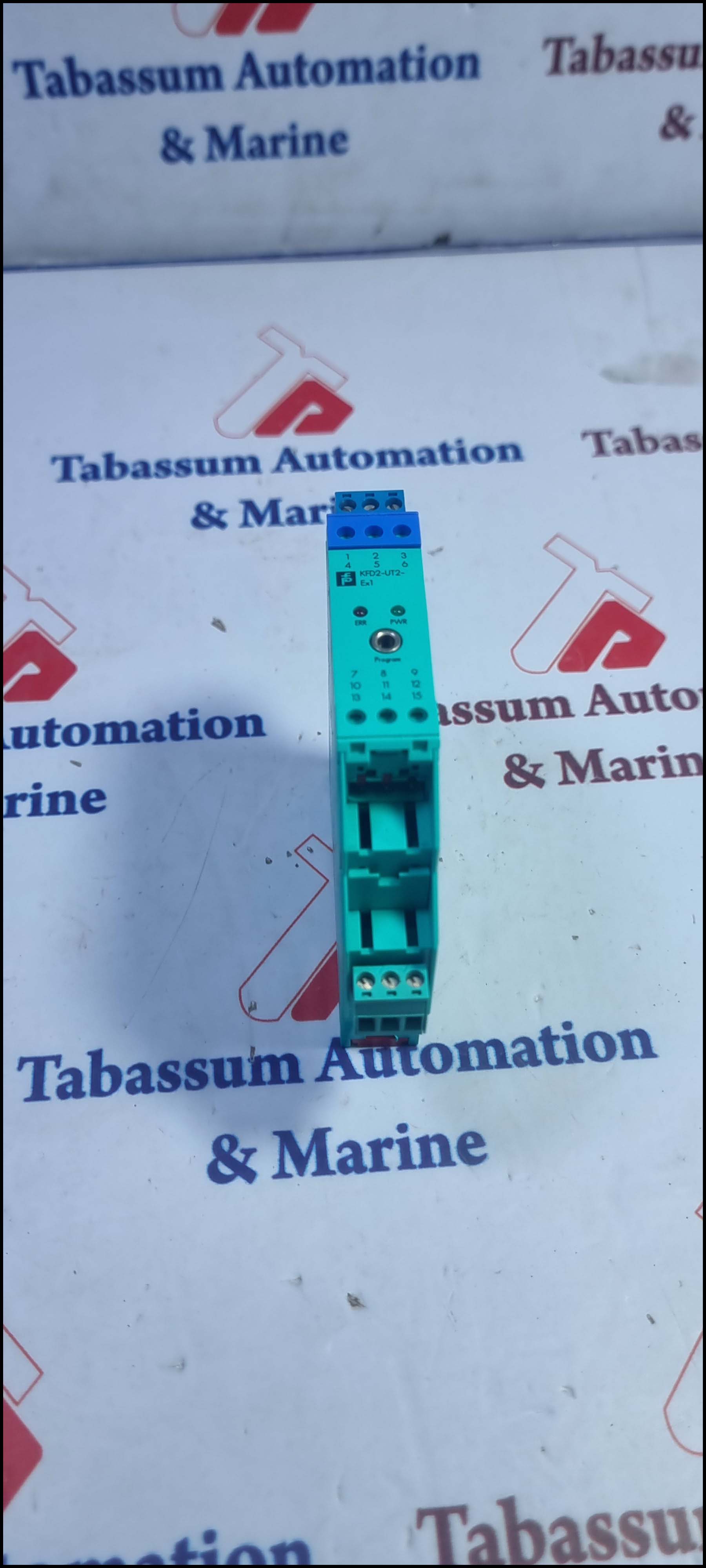

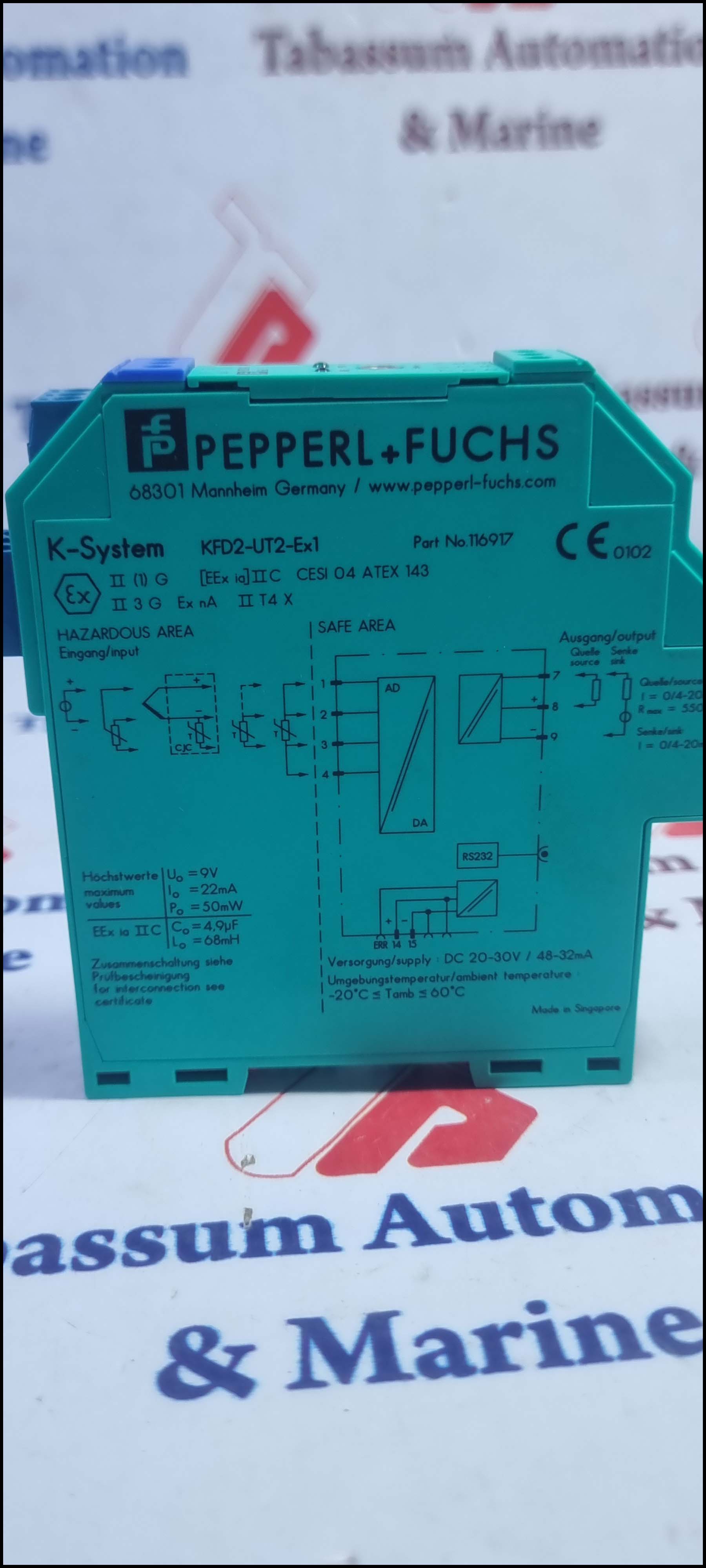

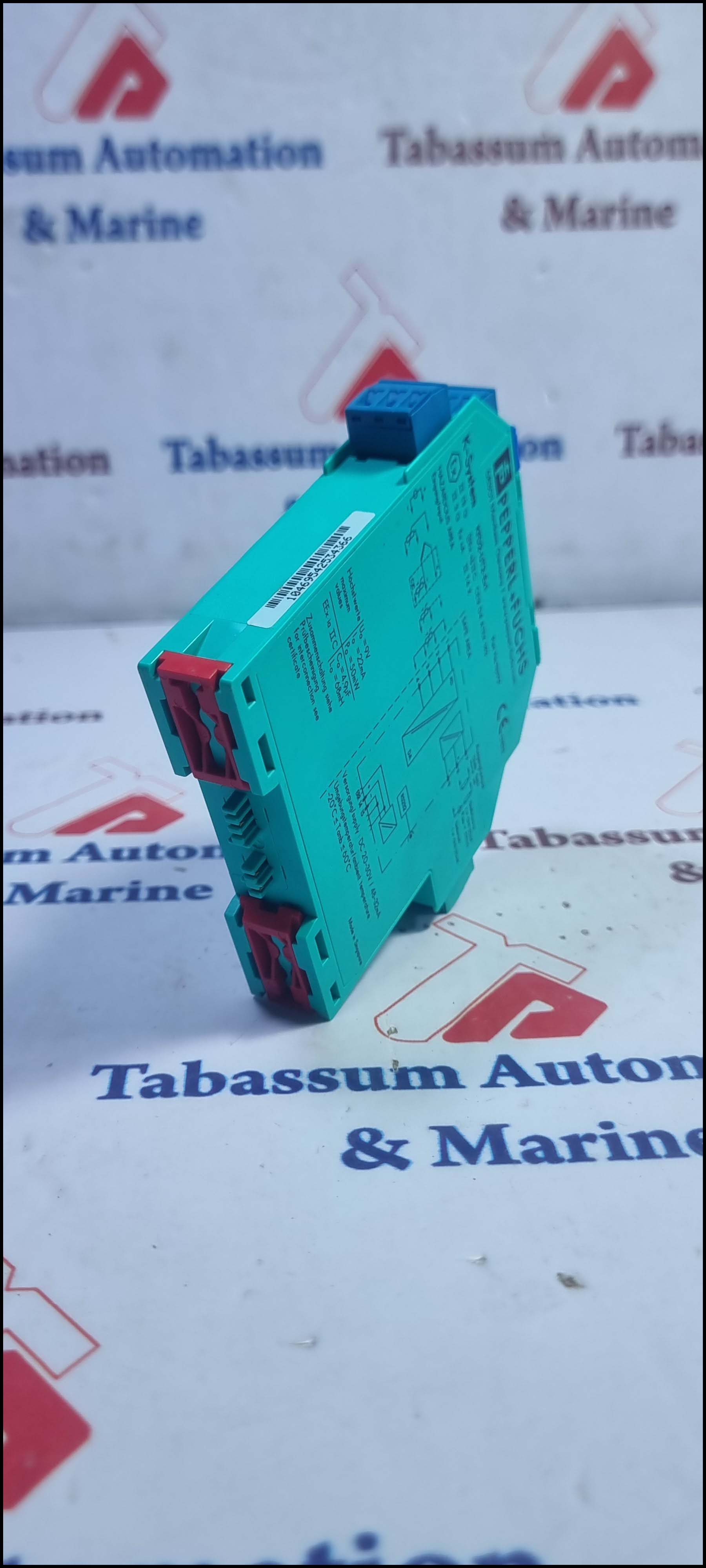

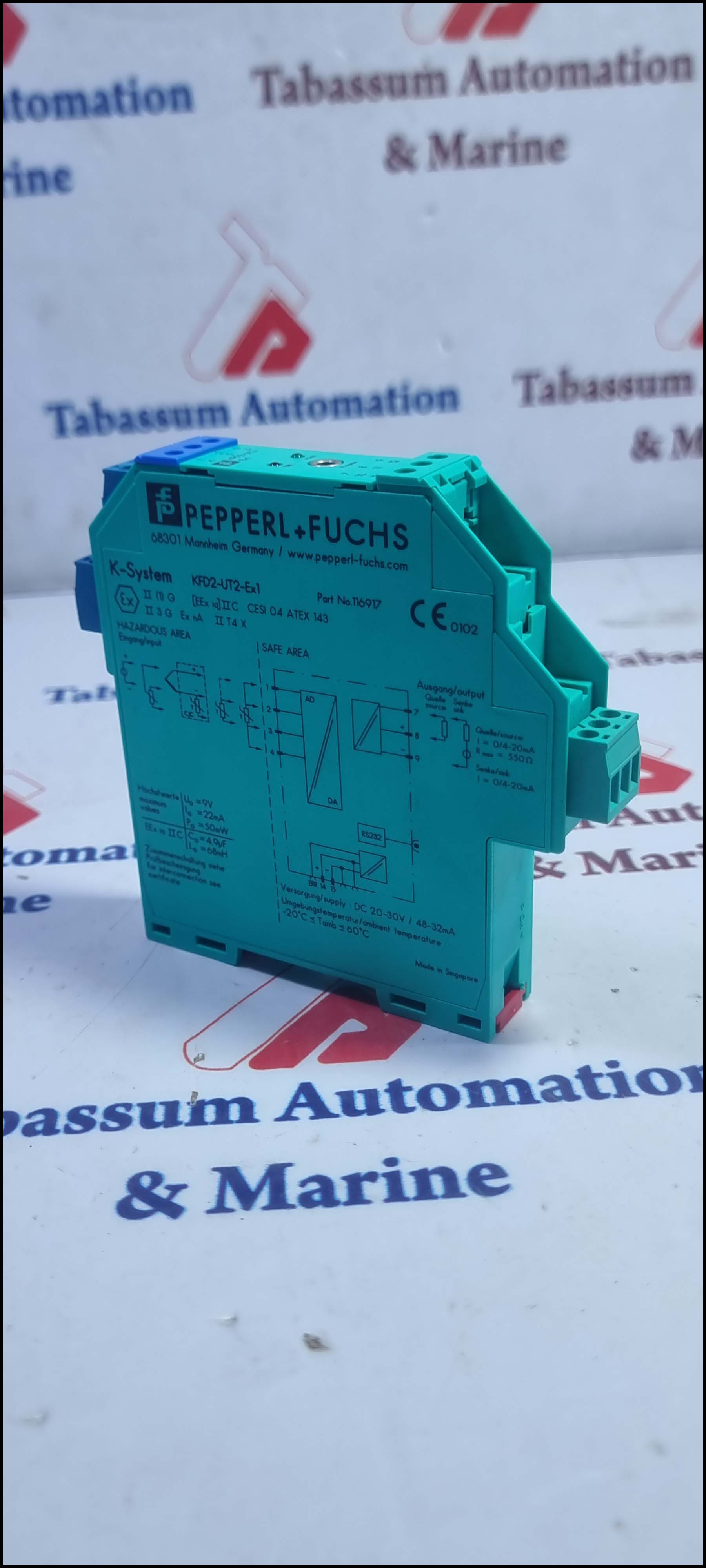

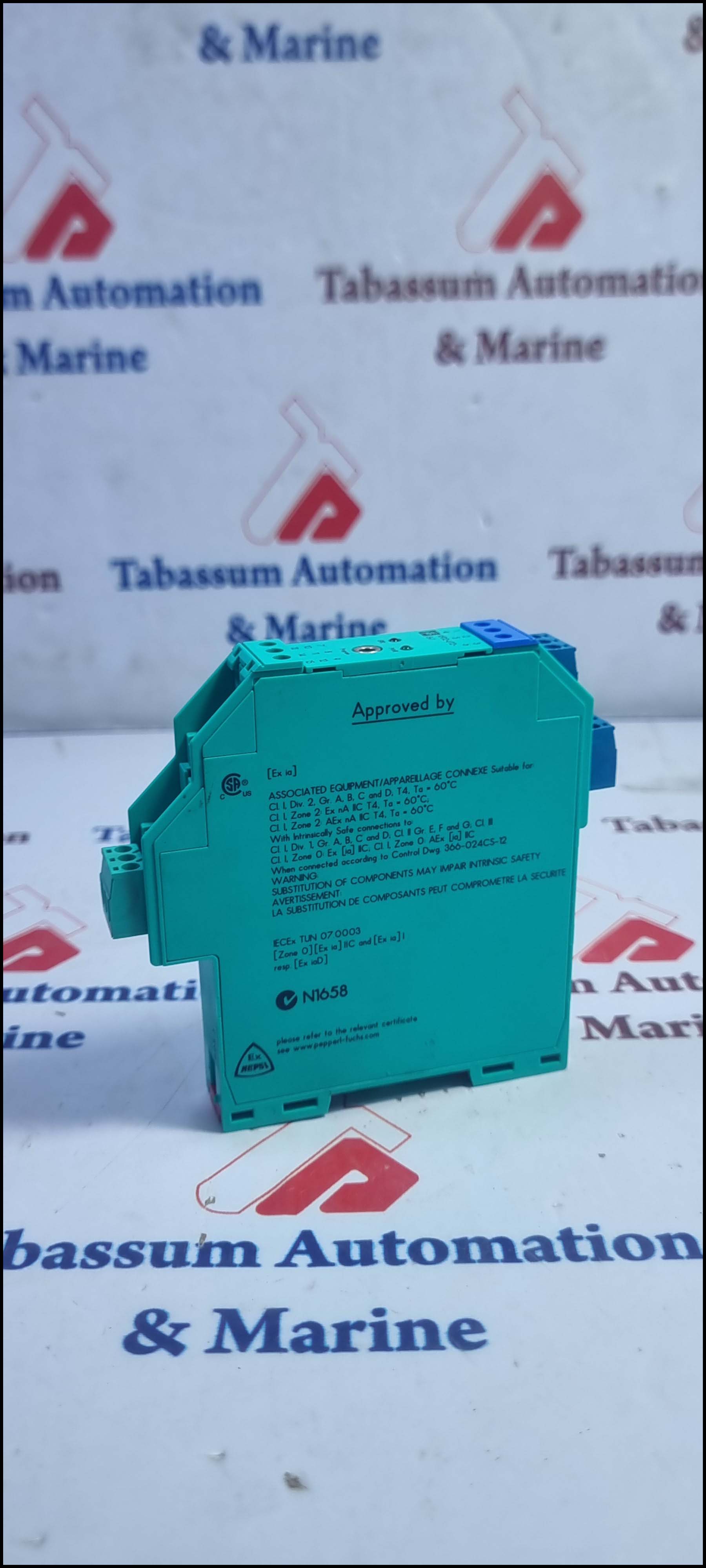

PEPPERL + FUCHS KFD2-UT2-EX1
Product Highlight
| Key Technical SpecificationsParameterSpecification DetailsChannels1-channel isolated barrier.Power Supply20 to 30 V DC (via terminals or Power Rail).Power Consumption\(\le \) 1.3 W.Input OptionsThermocouples (B |
| E |
| J |
| K |
| N |
| R |
| S |
| T) |
| RTDs (Pt100 |
| Pt500 |
| Ni100 |
| etc.) |
| Potentiometers |
| or Voltage (-100 mV to +100 mV).Output TypeAnalog current output: 0/4 mA to 20 mA (Sink or Source mode).Safety Integrity LevelUp to SIL 2 according to IEC/EN 61508.ConfigurationEasily programmed via PACTware software.Fault DetectionLine fault detection (LFD) and sensor burnout diagnostics via flashing front panel LEDs.Physical HousingIP20 rated |
| compact rectangular housing (20mm width) |
| mounted via standard 35mm DIN Rail. |
Product Description
Key Technical SpecificationsParameterSpecification DetailsChannels1-channel isolated barrier.Power Supply20 to 30 V DC (via terminals or Power Rail).Power Consumption\(\le \) 1.3 W.Input OptionsThermocouples (B, E, J, K, N, R, S, T), RTDs (Pt100, Pt500, Ni100, etc.), Potentiometers, or Voltage (-100 mV to +100 mV).Output TypeAnalog current output: 0/4 mA to 20 mA (Sink or Source mode).Safety Integrity LevelUp to SIL 2 according to IEC/EN 61508.ConfigurationEasily programmed via PACTware software.Fault DetectionLine fault detection (LFD) and sensor burnout diagnostics via flashing front panel LEDs.Physical HousingIP20 rated, compact rectangular housing (20mm width), mounted via standard 35mm DIN Rail.
